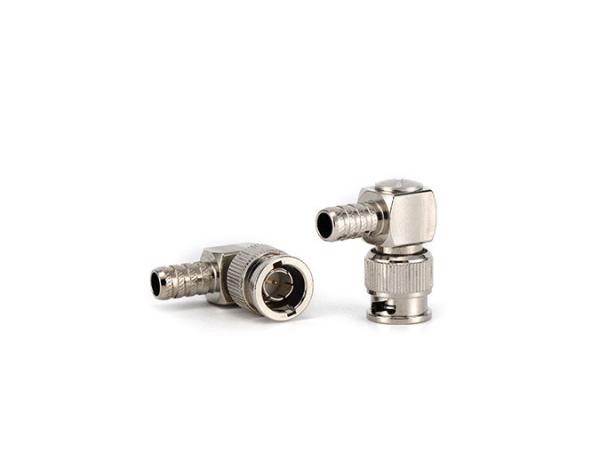

Mini-BNC Male Right angel Connector for LMR240 Cable

Product Categories

Terui International Group Co.,Ltd.

Contact Now

Name: MiniBNC Male Right angel Connector for LMR240 Cable
Brand: Terui
Price: 1 USD

Brand Name : Terui

Model Number : MINIBNC-JW240Y

Certification : RoHS

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 3-10 working days

Packaging Details : Standard export packaging

Contact Now

BNC connector is one kind of bayonet coupling mechanism connector up to 4GHZ.. It has two versions, 50Ω and 75Ω .They are intermateable.

Product Details

Mini-BNC Male Right angel Connector for LMR240 Cable

Teruilai P/N : MINIBNC-JW240Y

RoHS Certificate: Compliant

Electrical data	Requirments
Frequency range	DC-4GHZ
Dieletric withstanding voltage	1500V
Characteristic impedance	50Ω
Insulation Resistance	≧5000MΩ
Contact Resistance
.Center conductor	≦3mΩ
.Outer conductor	≦2mΩ

Mechanical data	Requirments
Durability (matings)	≧500

Environmental data	Requirments
Temperature range	-45℃ to 125℃

Material data	Requirments
Connector parts	Material	Plating
Body	Brass	Nickel-plated
Pin contacts	Brass	Gold
Insulators	Teflon
Gasket	Silicon rubber
Coupling Nut	Brass	Nickel-plated
